SeamGrabber Base

BlueWater Manufacturing

$0.00
The SG (SeamGrabber) Series features a base plate that "grabs" the seams on metal roofs and when combined with one of our roof safety rail systems

Metal Roof Edge Safety Rail Protection Products

The SG (SeamGrabber) Series features a base plate that "grabs" the seams on metal roofs and when combined with one of our roof safety rail systems, provides roof edge protection that complies with OSHA regulations for guardrails. The galvanized base plate is designed to fit various types of standing roof seams and can be used with the Architectural Series Railings, SafetyRail2000, StealthRail and Perma-Line Warning Line Systems.

Basic Use

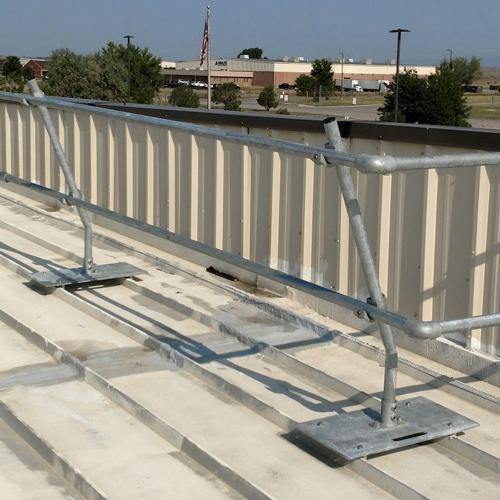

The SG guardrail system is ideal for protection for workers at mechanical units, ladder areas and roof hatches or to create a full perimeter roof edge protection system.

OSHA Compliance

Compliant with regulations for fall protection guardrail guardrails.

Features

  • Complies with OSHA regulations
  • Hot-dipped galvanized finish
  • Can be used with the Architectural Series Railings, SafetyRail2000, StealthRail and Perma-Line Warning Line Systems
  • Utilizes S-5 clamps
  • CAD Layouts included for installation

Minimum Requirements

In order to meet OSHA regulations for fall protection, outriggers must be utilized (returns/counter weights). Whether the Danger Side Run is 5' or 1000' in length, you must have these in place at the beginning and at the end of the run. Outriggers are standard rail kits that are connected at approximately 90° to the Danger Side Run of each end rail section.

Metal Roof Safety Rail

Approved product:

SG Guardrail System, BlueWater Manufacturing, distributed by Dakota Safety www.dakotasafety.com 866-503-7245

Standards:

System shall have top and mid rail in accordance with OSHA Standards.

  • Structural Load: 200 lb (90.7 kg), minimum, in any direction to all components in accordance with OSHA Regulations.
  • Height: 42 inches (1067 mm), minimum
  • Railings: 1 1/4" Schedule 40 pipe; 1.66 OD

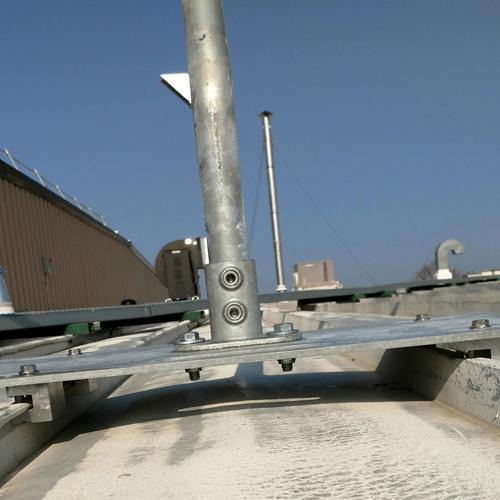

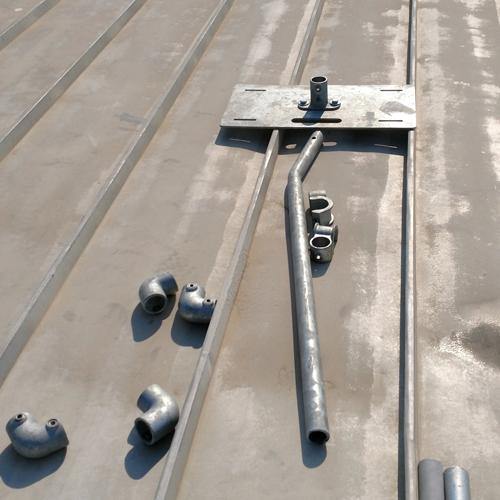

  • Mounting Base Plates: Galvanized base plates with receiver post and utilizing S-5-S roof clamps
  • Finishes: Available in standard Hot-Dip Galvanized or custom color upon request.

Supporting Documents:

  • SeamGrabber Product Data Sheet

Contact Us for your Metal Roof Safety Rail Systems

Request a quote today, or contact Dakota Safety for more information on the SeamGrabber Guard Rail System.

I n order to meet OSHA regulations for fall protection, outriggers (returns/counter weights) MUST be utilized. Whether the Danger Side Run is 5’ or 1000’ in length, you must have these in place at the beginning and at the end of the run.

Outriggers are standard rail kits (usually 5ft rail kits) that are connected at each start/end at approximately 90˚ to the Danger Side Run of each start / end of rail systems.

Outriggers (returns/counter weights) are not required for closed loop systems (no start ends).

An extra base is required to complete an open rail system (rail sections with start/ends); one rail section in the system requires 2 bases (kits only include 1 base)

NOTE: Please consult Dakota Safety if wind loads are required for rail systems. Additional outrigger sections adding counterweights can be added to rail systems to increase wind load compliance.
  • Delivery via LTL
  • Delivery Timing

Orders Placed

Delivery

Time

Monday - Friday, before 6pm Delivery estimate of 1-3 working days commences on the same working day the order is made. #Your order will arrive between Monday - Friday.
Monday - Friday, after 6pm Delivery lead-time of 1-3 working days commences on the next working day from when the order is made.
Saturday and Sunday Delivery estimate of 1-3 working days commences on the next working day from when the order is made.

  • For more details, check our FAQs out here!
